Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Item NO.:
LD-T313Product Origin:
CHINAColor:
Silver or any painted colorGoods stock:
100Product weight:
75Shipping Port:
SHENZHENLead Time:
7 Workdays or moreHigh Quality Tripod Turnstile For Ticketing

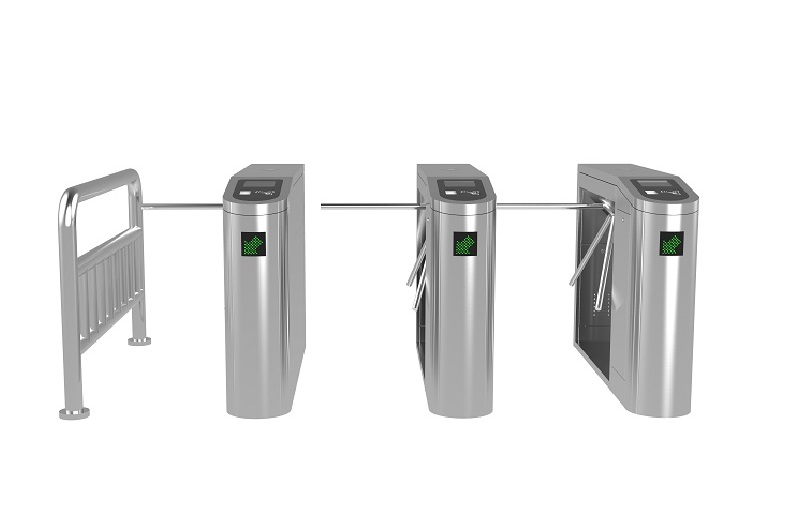

LD-T313 is a bi-directional tripod turnstile,, it is bridge design, with RFID card reader, QR code scanner, finger print reading to grant authorized personal for quick access. It is a high-performance tripod turnstile, made of high grade 304 material, rugged and durable for any weather conditions.
LD-T313 can be customized made as full automtaic , semi automatic and mechnical type. Among them the semi automatic tripod turnstile is the most widely used. Below is basic information about LD-T309 :
| Moduel No. | LD-T313 |
| Size | 1400х280х980 mm. |
| Material | 304 stainless steel |
| Unlocking time | <1s |
| Passing speed | 35 people / minute |
| Access width | 550 mm |
| Input voltage | 100V ~ 240V |
| Ambient temperature | : -20~+70 ℃ |
| The material thickness | 1.2mm |
| Access direction | On |
Comparision Chart of three type tripod turnstiles:
Mechanism specifications
Full automatic
Semi automatic
Mechanical
1、With fault self-checking and voice alarm prompt function, it is convenient for users to maintain and use。
√
×
×
2、Through the built-in small button on the main control board, the running status of the device can be programmed.
√
√
×
3、Power failure emergency,
Auto drop arm
Auto drop arm
No action
4、after power on.
Auto rise arm
Manual rise arm
No action
5、It has an automatic reset function. After the gate is opened, the system will automatically cancel the pedestrian's permission to pass within the specified time. The reset time is adjustable from 1S to 60S (the system default time is 10S)
√
√
×
6、Can be connected with various equipment such as access control system, consumer system, electronic ticket system, biometric system, electrostatic tester, etc.。
√
√
×
7、The unique positioning and automatic reset function can always keep one of its arms in a horizontal position
√
√
×
8、Traffic direction LED indicator prompt function。
√
√
×
9、After giving the gate opening signal, the gate lever automatically rotates to a certain angle, prompting the passage function。
√
×
×
10、When pedestrians pass, the arms moves
Automatic rotate
Manual push
Manual push
11、The entry and exit of personnel can be controlled one-way or two-way.
√
√
×
12、Remote control and management can be realized directly through the management computer
√
√
×
13、LED count display function
√
√
×

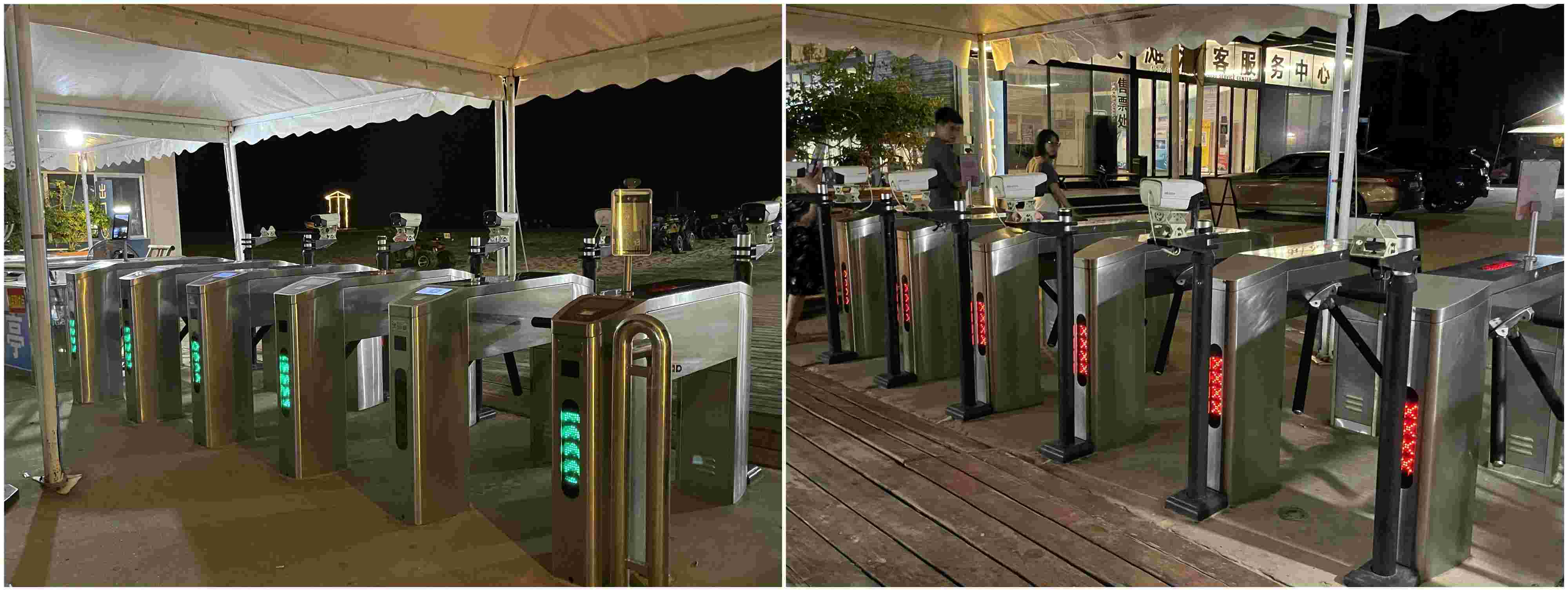

Project pictures:
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
The waist height tripod turnstile assists pedestrian access control at the passageway in the buildings. It is the outstanding choice for compact design and function.
