Item NO.:
LD-T311Payment:
L/C, T/TProduct Origin:
Made in ChinaColor:
SliverGoods stock:
100Shipping Port:
ShenzhenLead Time:

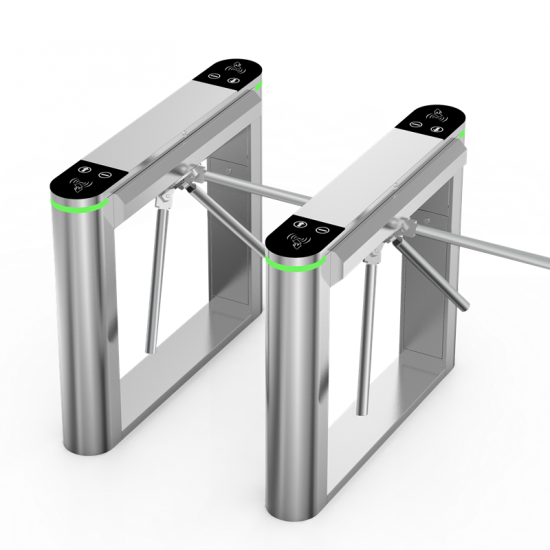

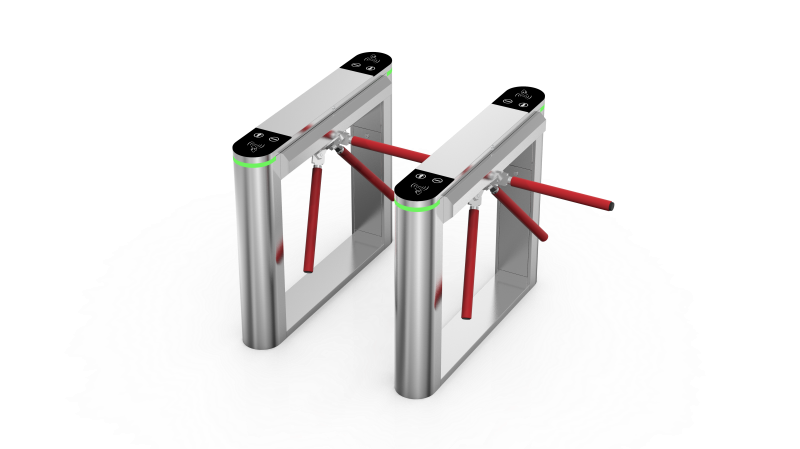

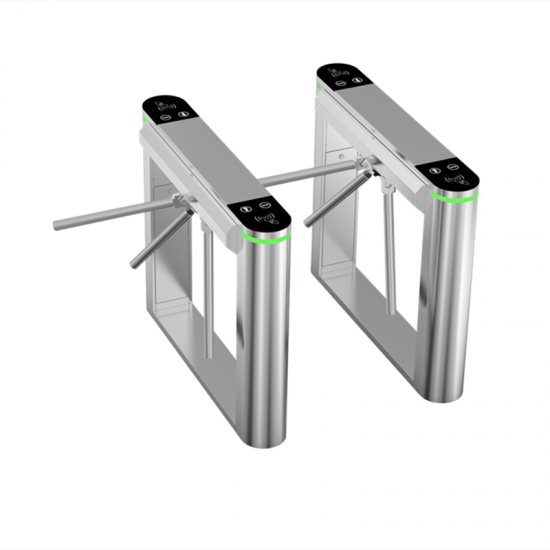

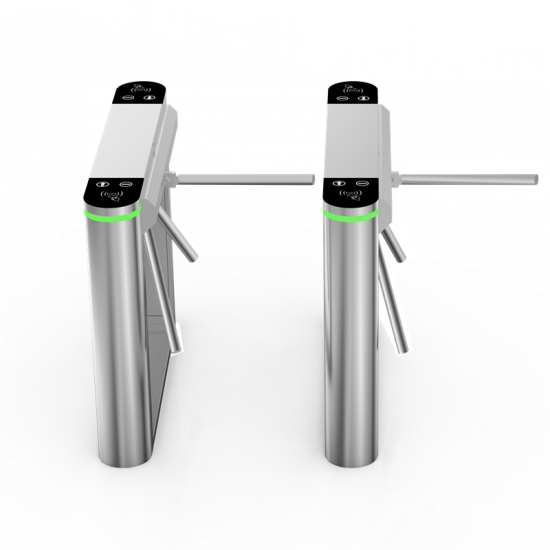

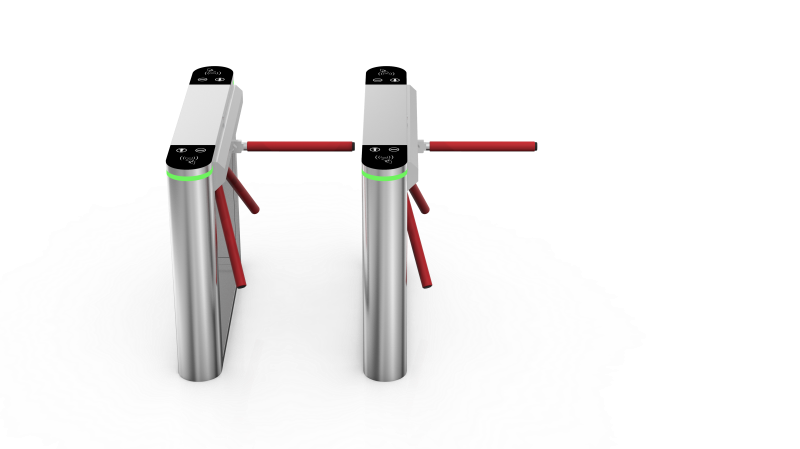

7-10 working daysTripod Turnstile Time Attendance for Construction Site
Production Description ：
LD-T301 three roller gate is easy to integrate IC card, ID Recognition equipment such as cards, QR codes, fingerprints, and face recognition device, which can manage the pedestrian access control effectively and intelligently. It is widely used in commercial complexes, residential quarters, enterprises and institutions, factories, scenic spots, construction sites, transportation hubs, etc. Where the channel realizes intelligent management.
Product Parameters:
| Moduel No. | LD-T311 |
| Size | 1200*230*980mm |
| Material | 304 stainless steel, acrylic |
| Unlocking time | 0.2s |
| Traffic speed | ≤35 persons/min |
| Channel width | ≤550mm |
| Input voltage | 220V, 50HZ |
| Drive voltage | 24V |
| Ambient temperature | : -25~+70 |
| Power | 30W |
| Opening signal input | dry contact |
| The material thickness | 1.2mm |
Highlight :
1.Super compatibility
2.Adopt brushless motor, low wear and tear, stable operation
3.Alarm when people break in.
4.Anti-tailing, fast passing speed.
5.Beautiful, generous and high-end in appearance
Product Functions :
1. With fault self-checking and alarm prompt function, it is convenient for users to maintain and use;
2. A variety of traffic modes can be set.
3. Anti-shock function, the gate is automatically locked when the gate opening signal is not received;
4. Sound and light alarm when there is a illegal break-in and trailing;
5. Infrared anti-pinch function, when the gate is reprocessing, the gate will automatically return to the open state if the infrared detects a person in the passage;
6. The swing arms can be adjusted at the same time (for double swing conditions);
7. It has an automatic reset function. After opening the gate, the swing gate will reset automatically when it is not passing within the specified time, and the waiting time is adjustable (default time is 5S);
8. The unified standard external port can be connected to a variety of access control equipment, and can be remotely controlled and managed through the computer.
9. Support multi-functional system customization and docking.
Economical three-roller gates, mostly used in construction sites , factories and viewpoint, and can be customized for scenic spot ticketing systems, construction site access control systems and other multi-functional systems
CE Certification :
Product Video :
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
The waist height tripod turnstile assists pedestrian access control at the passageway in the buildings. It is the outstanding choice for compact design and function.
