Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
Item NO.:
LD-T306Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 Days

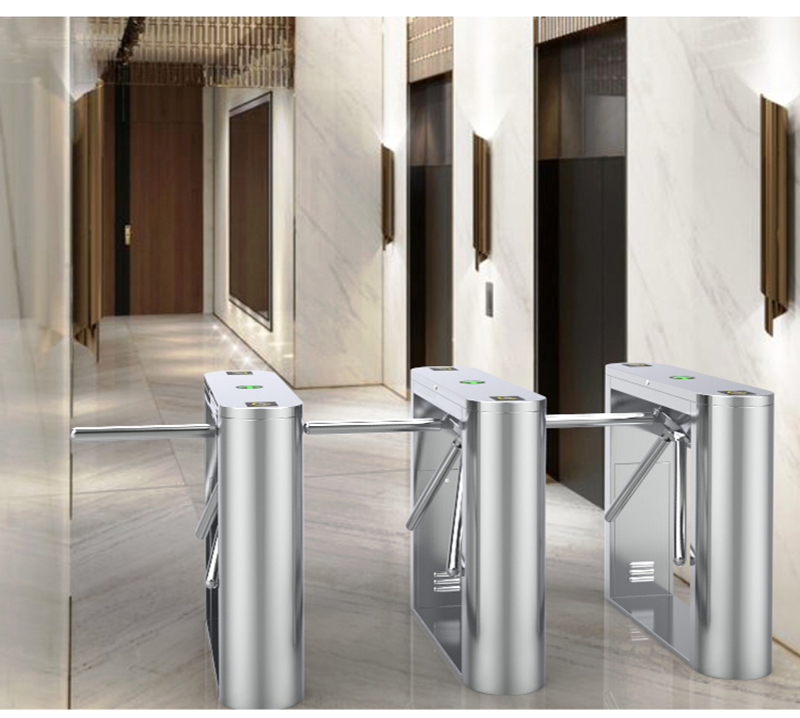

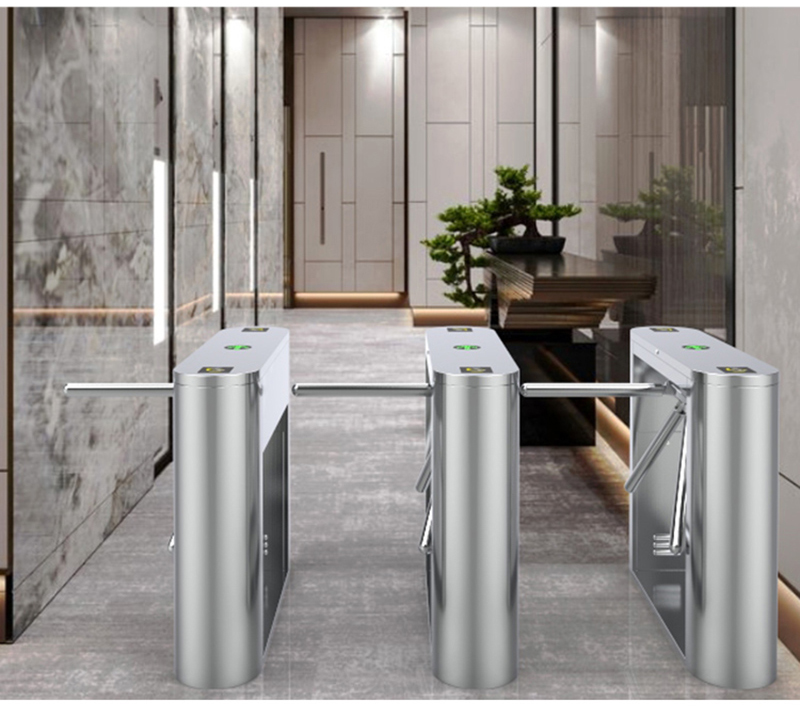

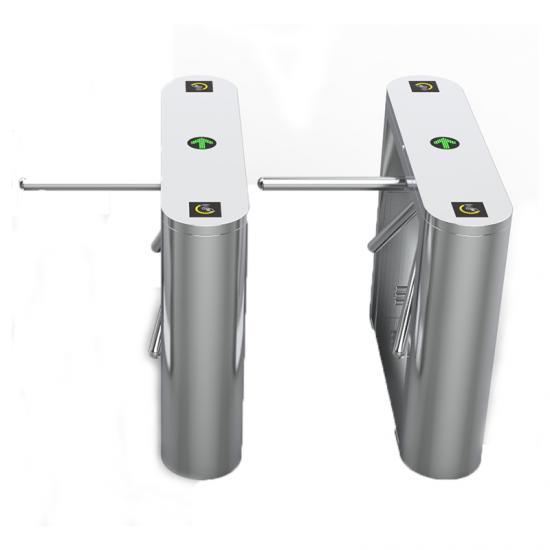

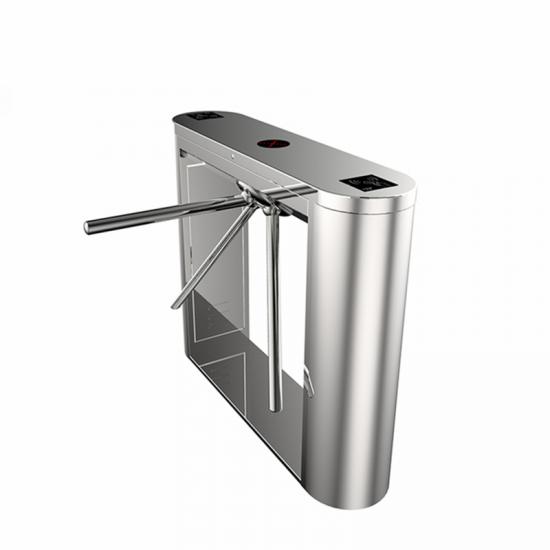

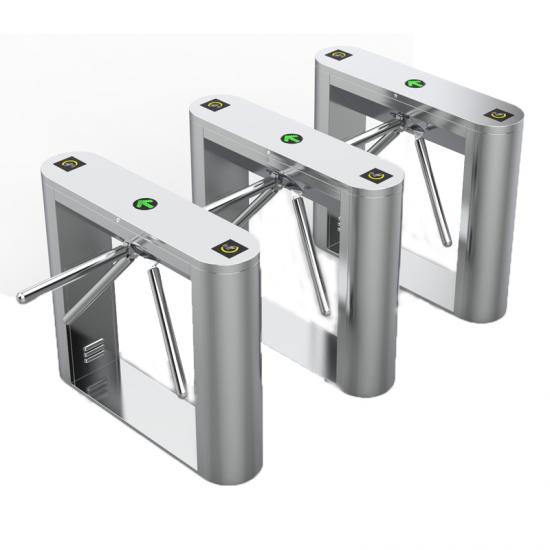

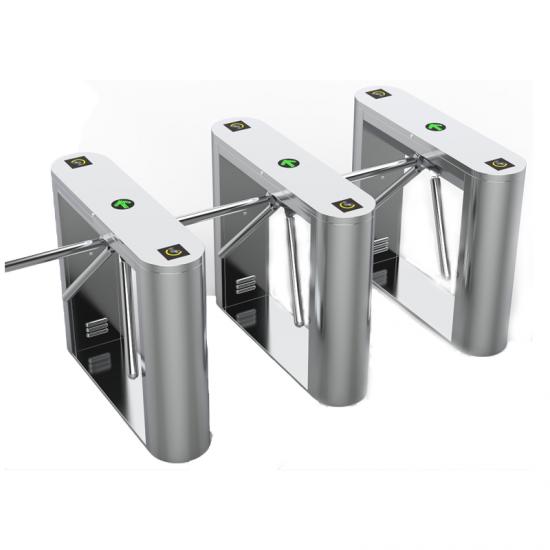

LD-T306 BRIDGE TYPE TRIPOD TURNSTILE ACCESS ENTRANCE
Tripod Turnstile is the perfect waist high turnstile for different kind of applications. The device is designed to withstand high pedestrian flow with little maintenance, making it the ideal access entrance solution for factory, warehouse, kids park and subway station.
The Bridge Tripod Turnstile is made of brushed stainless steel and featuring extended radiused ends. It combines with the perfect appearance and rugged functionality to become the most popular waist high turnstile in the world. With its high-quality rotor mechanism, the three arms could rotate in single or two directions. The semi and fully motorized version devices unlock the gate only the users pass the credential checking.
Parameters:
|
Model No. |
LD-T306 |
|
Size |
1200*230*980 mm |
|
Material |
304 stainless steel |
|
Channel width |
510mm |
|
Thickness of shell |
1.2mm |
|
Power |
110-230V AC Single phase |
|
Traffic direction |
Single Direction or Bi-directional; |
|
Passing speed |
30~35 people / minute |
|
Opening signal |
Dry contact |
|
Life |
5 million times; |
Features:
1. One way or two-way control of passenger access
2. The management computer can be controlled directly through RS 232 or RS 485 interface.
3. Rotor mechanism action lock to prevent two users pass through at same time.
4. Arms could drop down and free in emergency when power failure (For Safety requirements)
5. Red / Green status lights indicates the direction of lane.
6. The Self-centering control head with hydraulic shock suspension. (Luxury Version Optional)
7. The turnstile will automatically cancel the permission of the passageway when no access is made within the specified time.
8. The Bridge Type Tripod Turnstile is integrated with software and hardware via a dry contact and could be added with RFID cards, Face recognition, attendance system, and more.
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
The waist height tripod turnstile assists pedestrian access control at the passageway in the buildings. It is the outstanding choice for compact design and function.
