Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
Item NO.:
LD-T304Goods stock:
100Shipping Port:
SHENZHENLead Time:
5-10 WorkdaysHigh Quality Mechanical Tripod Turnstile

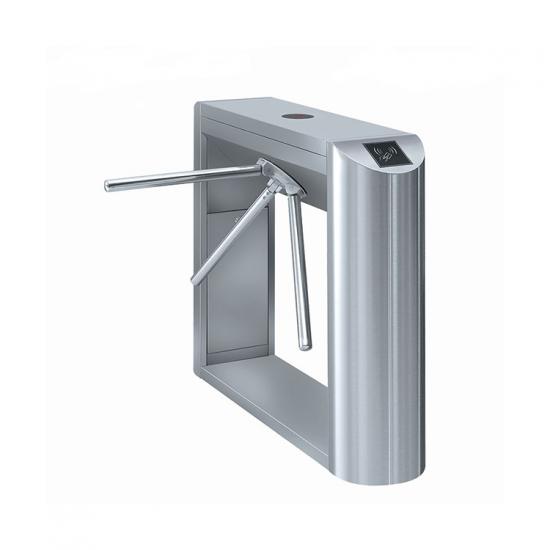

LD-T304 is a high quality single-lane half height turnstile for access control, which realizes smooth and quite passage without much power consumption. Its cabinet is made of 304 stainless steel, it is quite durable and capable for outdoor applications. Tripod arms are held in fixed position and it only allows one pedestrian to pass at one time, and denies un-authorized access. LD-T307 tripod turnstile is totally compacted for application which has limited place. With built in RFID reader or fingerprint or QR code scanner, it provides a touch-less, convenient and secured entrance control.
LD-T304 mechanical tripod turnstile is a space-saving and cost-saving method to protect your facility's security. It can be used in interior and exteriorenvironment, like office buildings, construction site, attractions.
Moduel No.
LD-T304
Size
1200х280х980 mm.
Material
304 stainless steel
Unlocking time
<1s
Passing speed
35 people / minute
Access width
550 mm
Input voltage
100V ~ 240V
Ambient temperature
: -20~+70 ℃
The material thickness
1.2mm
Access direction
One-way / two-way
Opening mode
ID/IC card reader, barcode, button opening, etc.
Basic information about LD-T304:
1, SUS304 stainless steel housing
2, LED indicator in bi-direction
3, Bi-directional tripod turnstile with arm drop function for emergency or fire.
4, Cost effective, high quality, attractive price
5, Highly imploded with various access control system
6, Easy installation and maintenance
Performance:
1. Tripod turnstile mechanism--Semi-automatic movement with large hydraulic shock absorption,it makes least noise when rotating
2. 485communication,highly integrated with all kinds of access Control system
3. High quality electrical components, all international certificated
4. Mini fan to prevent condensation and heat dissipation,makes It more suitable for outdoor projects
Project:
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
The waist height tripod turnstile assists pedestrian access control at the passageway in the buildings. It is the outstanding choice for compact design and function.
