Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Item NO.:
LD-T302Product Origin:
ChinaGoods stock:
100Shipping Port:
ShenzhenLead Time:
5-10 workdays

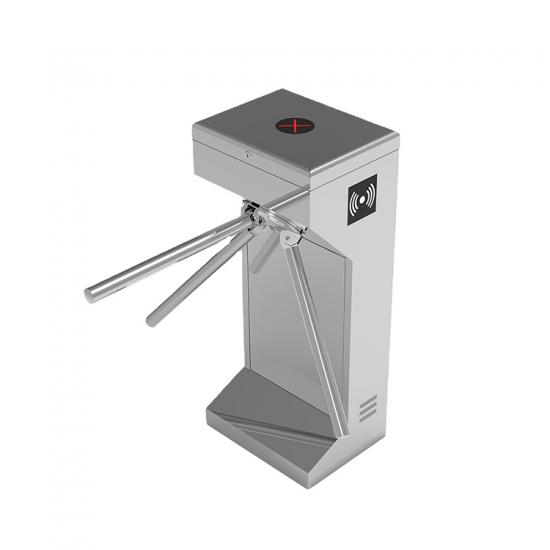

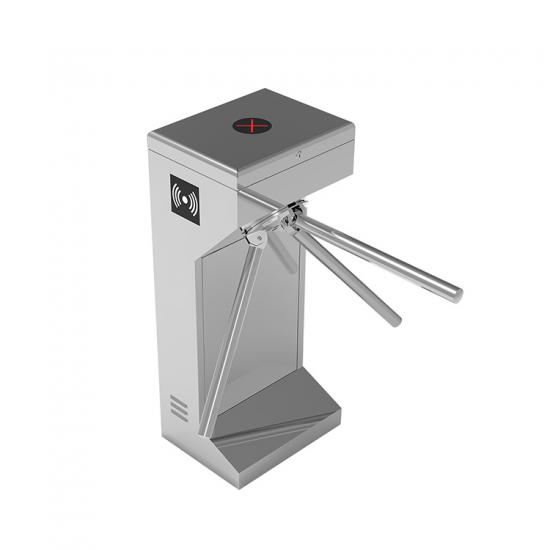

Card access mechanism half height tripod turnstile
LD-T302 is mini tripod turnstile, which is suitable for limited entrance space but require maximum efficiency traffic management. Mini vertical tripod turnstile material can be brushed or polished 304 stainless steel, also can be powder coated steel. It can be used in various internal and external environments.
Automatic drop arm tripod turnstile refers to drop arm function in tripod turnstiles, when there is emergency, the rotating arms will drop automatic to enable free passage for people’s quick evacuation.
Advantages of LD-T302 tripod turnstile：
1，Automatic drop bar when in panic situation
2，Small size, high efficiency
3，One way/ bi-direction adjustable

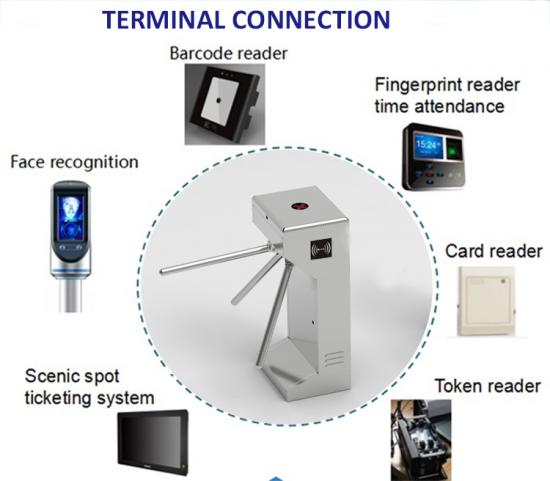

4，Highly integrated with RFID, biometric recognition, bar code or QR code scanner , all kinds of access control system
5，Automatic lift bar when reconnecting to power supply
6，Counting function with a counter, which can be widely used in scenic spots
7，Cost effective price
8，Wide application, interior & outdoor
9，LED indicator display passage direction and status
10，Full set, ready to use
Specifications:
| Model No. | LD-T302 |

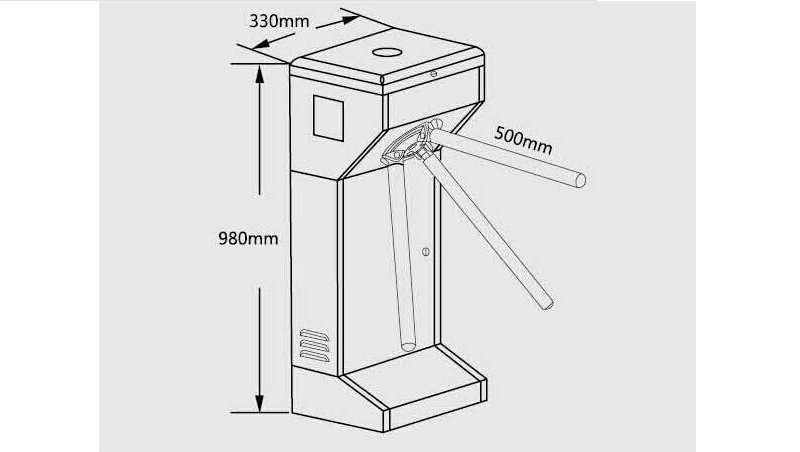

| Size | 420х330х980mm |
| Material | 304 stainless steel |
| Unlocking time | 0.2s |
| Traffic speed | ≤35 persons/min |
| Channel width | ≤550mm |
| Input voltage | 220V, 50HZ |
| Drive voltage | 24V |
| Ambient temperature | : -25~+70 |
| Power | 30W |
| Opening signal input | dry contact |
| The material thickness | 1.2mm cabinet， 1.5mm top cover |
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
The waist height tripod turnstile assists pedestrian access control at the passageway in the buildings. It is the outstanding choice for compact design and function.
