Item NO.:
LD-T303Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:

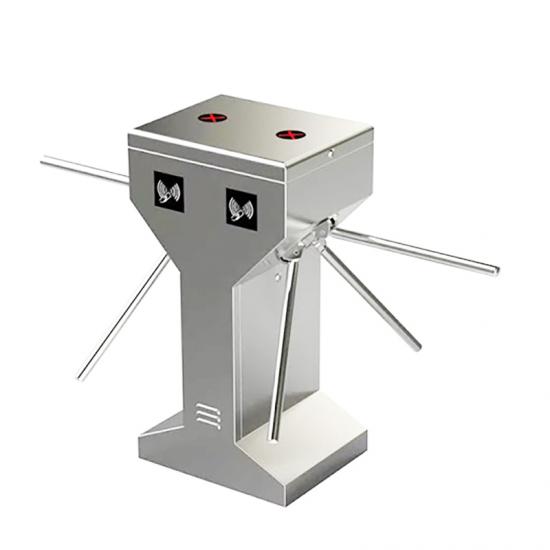

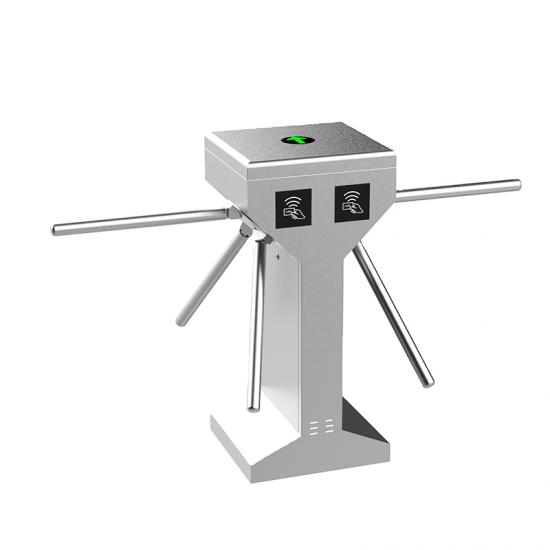

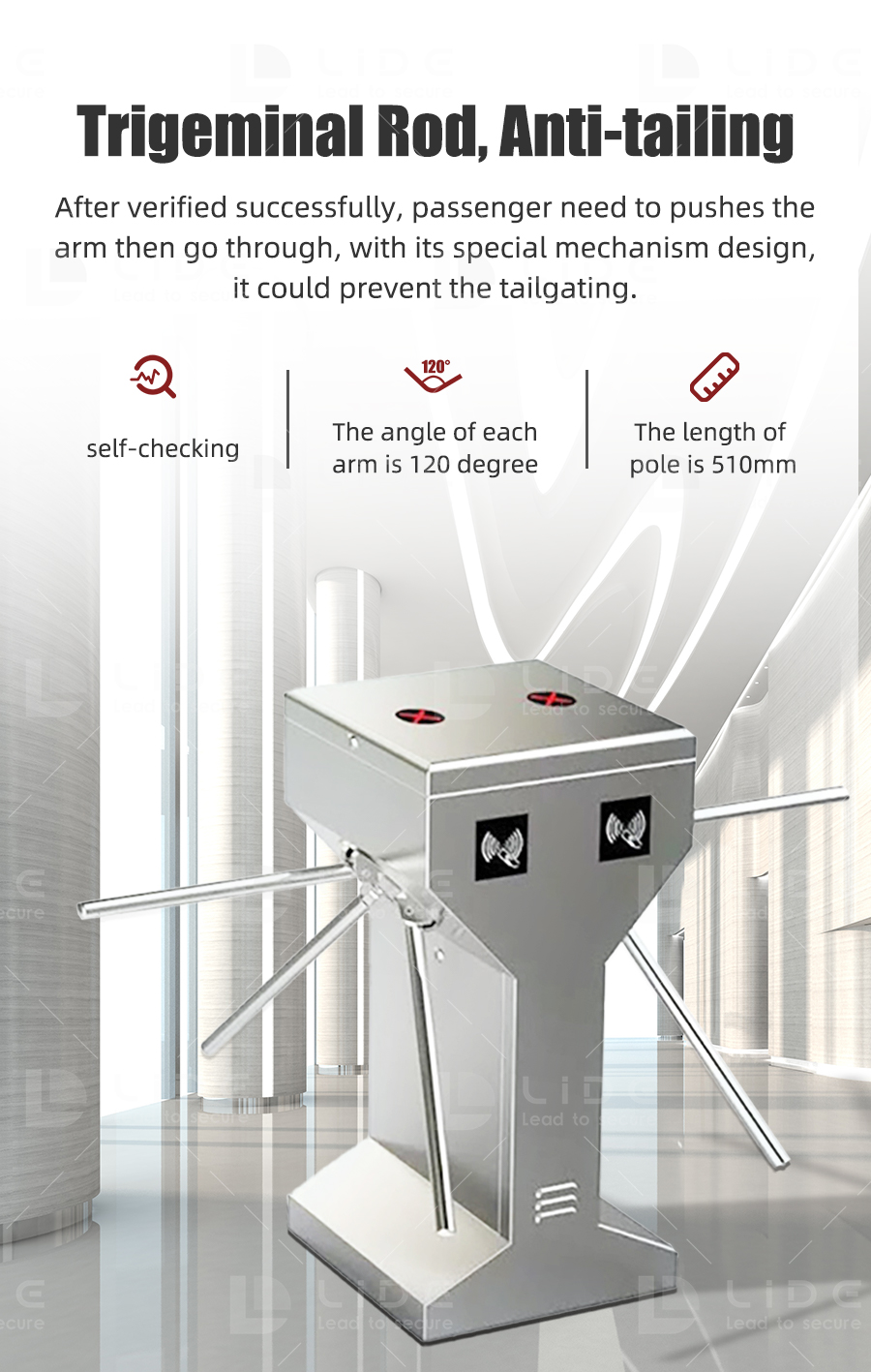

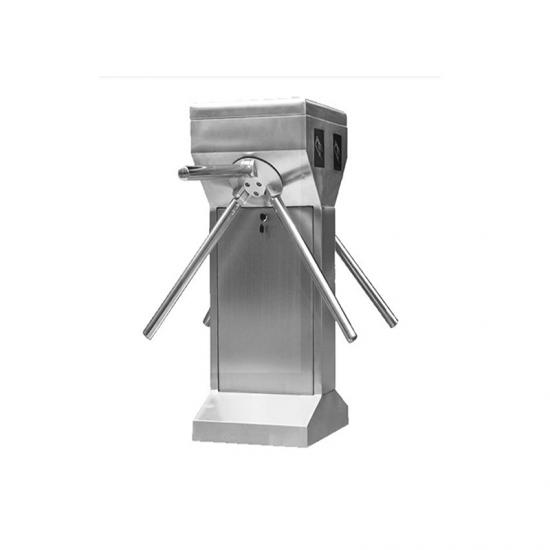

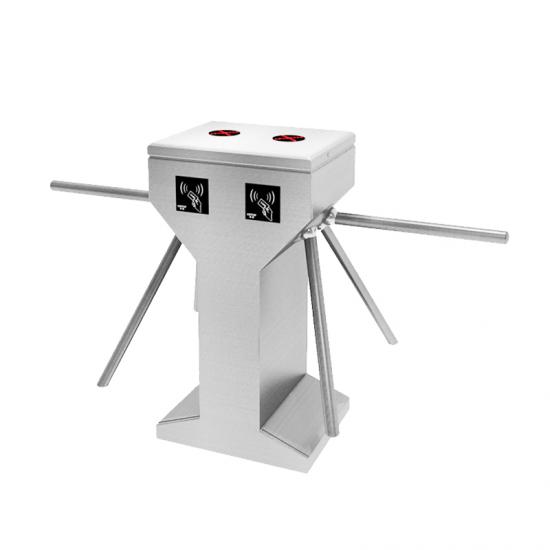

7-10 DaysDual Lane Waist Height Tripod Turnstile
The dual lane tripod turnstile is designed for small workplaces with high level of pedestrian flow. The three arms mechanism offers smooth rotation and also has the drop-down function that provides the fail-safety solution in case of emergency.
The tripod turnstile has the 304 stainless steel housing, which is rust-resistance and solid. The rotating arms only allow one person to pass at one time, that is the simple and effective solution for anti-tailgating, it is highly used as the access control entrance in public occasions, such as the museum, swimming pool, sports stadiums, etc.
Parameters:
|
Model No. |
LD-T303 |
|
Size |
420*330*980 mm |
|
Material |
304 stainless steel |
|
Channel width |
550mm |
|
Thickness of shell |
1.2mm |
|
Power |
110-230VAC Single phase, 50/60 Hz |
|
Traffic direction |
Single Direction or Bi-directional; |
|
Passing speed |
30~35 passengers per minute |
|
Opening signal |
Dry contact |
Product Features:
1. Mechanical Tripod Turnstile: passenger not requires verification to enter
2. Semi-automatic Tripod turnstile: drive by solenoid lock mechanism, after the identification verified successfully, the passenger pushes the arm and passes through, then the arm could rotate to home position. (Service Life: 5 million times)
3. Full Automatic Tripod turnstile: drive by electric motor, the passenger just pushes the arm a little, the arms would rotate automatically until arrive in home position. (Service Life: 9 million times)
4. The LED indicators show active/inactive traffic directions in the passage.
5. The opening method can be set to timeout delay within 60 seconds.
6. Smallest size fit for tight spaces and easy installation.
7. Integrated with access control components such as attendance system, temperature scanning, card or barcode reader systems, and more.
8. With its dual mechanism structure, could allow two passengers go through at one time, yet not carry the luggage.
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
