Item NO.:
LD-T308Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 Days

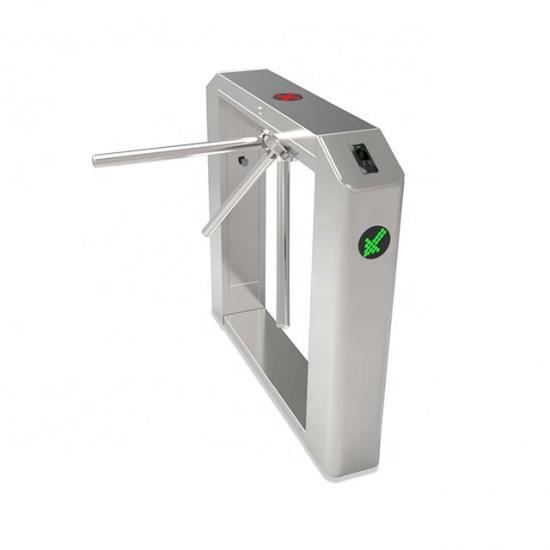

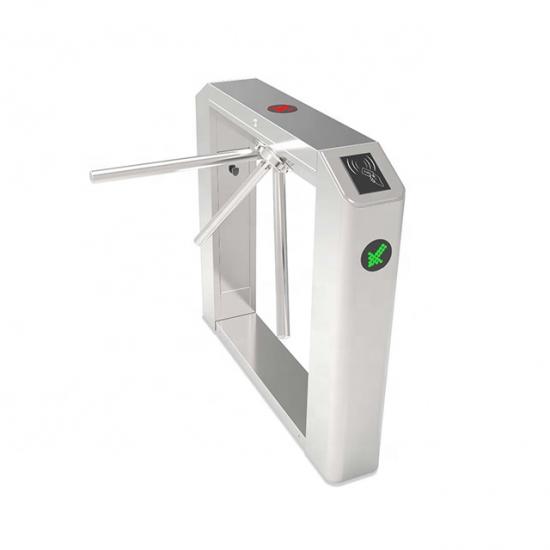

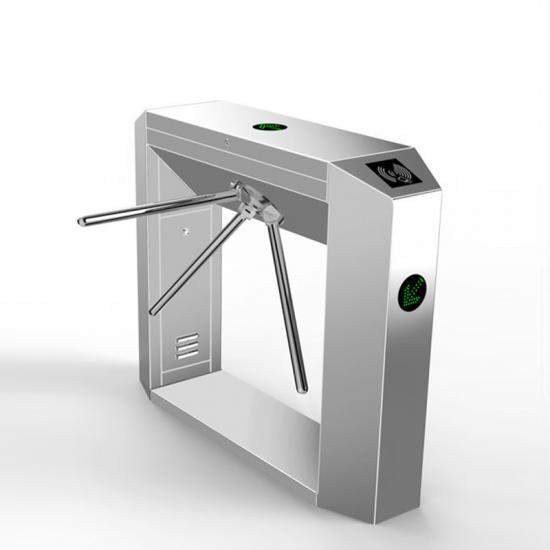

TRIPOD TURNSTILE ACCESS CONTROL SYSTEM GATE
A Tripod Turnstile is the access control gate which allows a single person to pass at each time. Turnstile often used for controlling and counting the pedestrian flow passing through the entrance. This helps security by restricting unwanted objects and potential trouble from entering the locations.
We offer portable turnstiles that can count (for convention centers and national fairs), coin and bill acceptor turnstiles for business location, ticket storage turnstiles for tourist area and movie theatre. Depending on actual needs and specification, combinations of different system and their functionalities can be customized. Our offerings range from the security needs to improve management efficiency and user experience.
Parameters:
|
Model No. |
LD-T308 |
|
Size |
1200*280*980 mm |
|
Material |
304 stainless steel |
|
Channel width |
550mm |
|
Thickness of shell |
1.2mm |
|
Power |
110-230 VAC Single phase |
|
Traffic direction |
Single Direction or Bi-directional; |
|
Passing speed |
30 persons/minute |
|
Opening signal |
Dry contact |
|
Life Time |
5 million times; |
Features:
1. Equipped with solenoid locking system and 360 degree movement with built in bi-directional operation.
2. Drop arm feature it allows free lane space for exit in case of emergencies or power failure with the arm dropping from its horizontal position.
3. Superior locking which prevents them from rotating back to original position after it has moved 25 degree angle from its rest position.
4. LED indicates the passing direction (forbidden or available).
5. Positive action lock prevents entry of more than one person at a time.
6. System will cancel the passing permission if a person does not pass through the lane within the valid passing time.
7. The Turnstile is integrated with software and hardware via a dry contact and could be compatible with RFID cards, biometric system.
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
