Vertical tripod turnstile is a space efficient security barrier, with a compact design, still offer sufficient space to integrate any access control system. The device could work bi-direction to control the entrance and exit. It has a good performance for anti-tailgate.
Item NO.:
LD-T312Payment:
T/T, LCProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShekouLead Time:
7-10 workdaysCN Safety Gate Tech New Design Vertical Tripod Turnstile

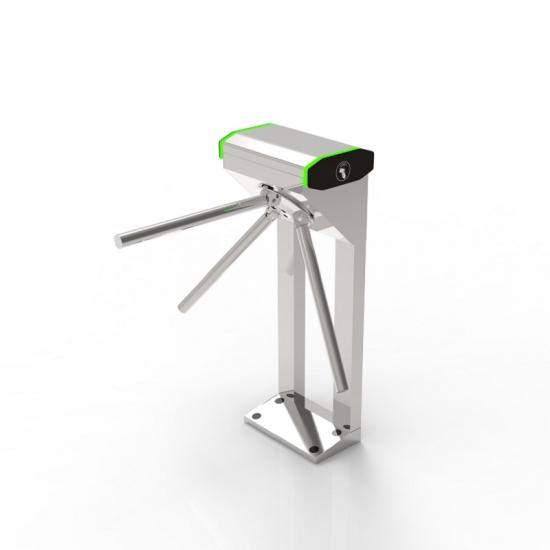

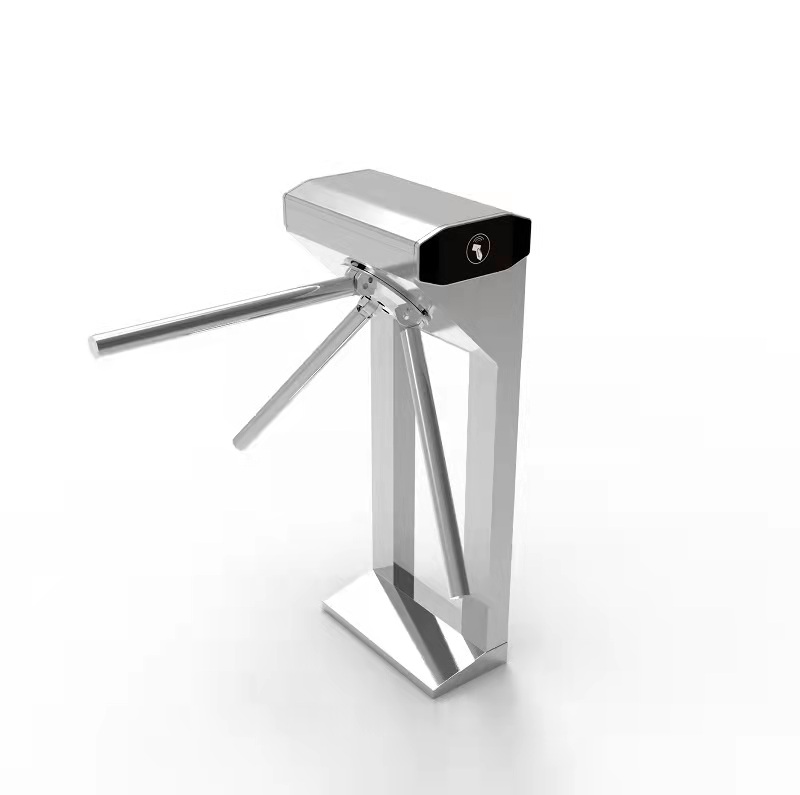

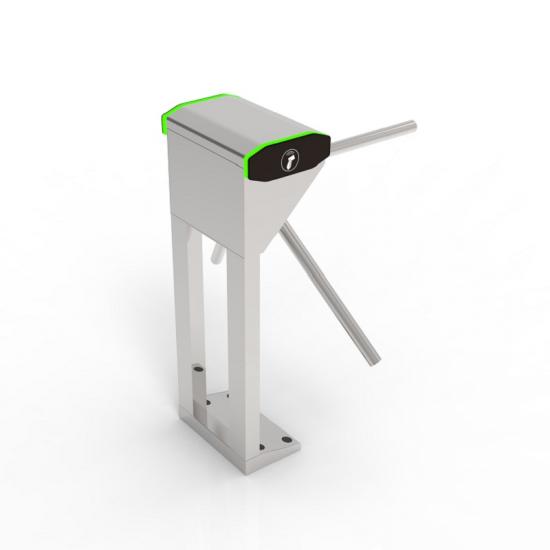

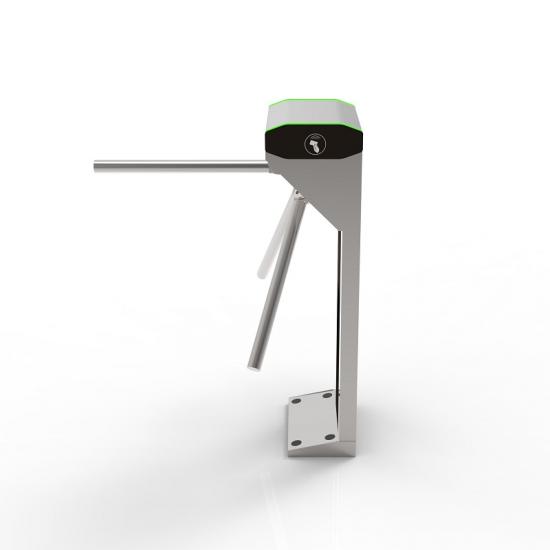

LD-T312 is new designed vertical tripod turnstile made of 304 stainless steel, which is rustproof, durable, and can resist external destroy, and with a compact design, but still could offer sufficient space to integrate any access control system. Vertical Tripod turnstile LD-T312 is a cost-effective solution for entrance control. You can integrate biometric facial recognition or RFID card reader or QR code reader or fingerprint.
Main features:
1. The thickened stainless steel plate is used for corrosion resistance, wear resistance, high temperature resistance, good rust resistance, and durability.
2. The security tripod turnstile gate is automatically reset, and the swing arm of the channel gate will automatically drop to ensure unobstructed flow after power failure.
3. One person, one shot, anti-tailing.
4. Customize bar code/QR code scanning access channel.
5. Customize the throughput of the card access channel.
6. Customize face recognition/fingerprint access channel.
7. Counting function can be added.
Product specification:
|
Model No. |
LD-T312 |
|
Size |
350*260*1000 mm |
|
Material |
304 stainless steel |
|
Channel width |
550mm |
|
Thickness of shell |
1.2mm |
|
Power |
110-230 VAC Single phase |
|
Traffic direction |
Single Direction or Bi-directional; |
|
Passing speed |
30 persons/minute |
|
Opening signal |
Dry contact |
|
Life Time |
5 million times; |
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
